Graticule and coordinates

All teacher notes · Open the lab · 2218 words · ·

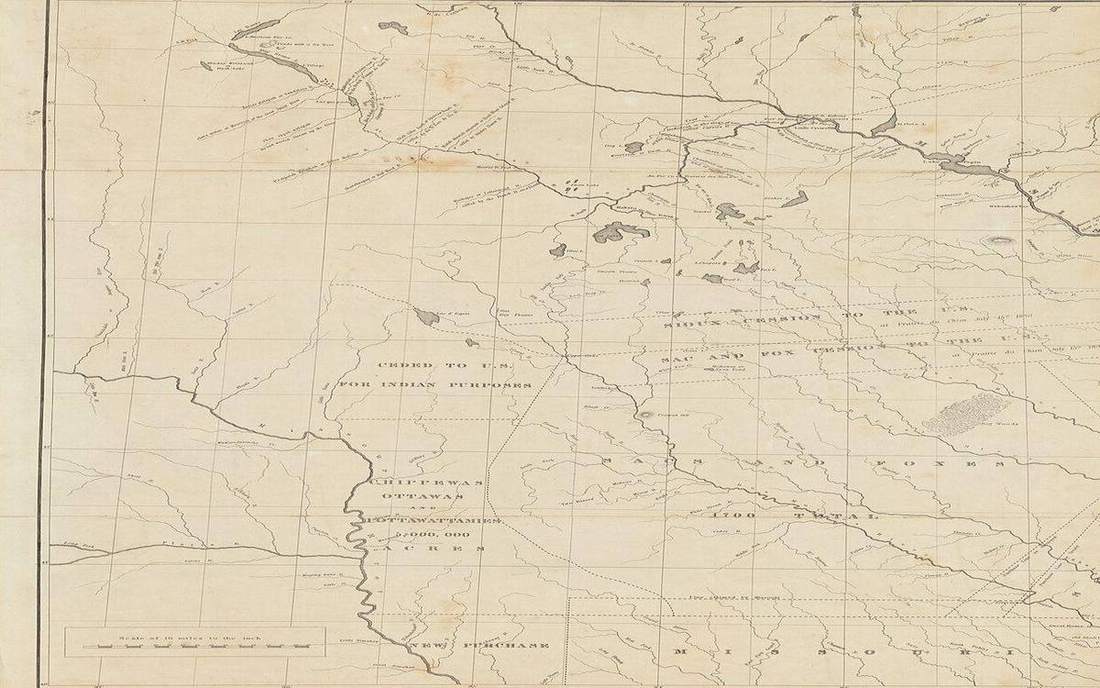

Field photograph or official scientific figure for teaching graticule. A second photograph for the projector script — not the lab cover. Source: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC.Wikimedia Commons / NASA / USGS / NOAA, public domain or CC

Why this lesson, and why the 3D

Graticule and coordinates is a fifteen-minute projector lesson, not a homework packet and not a film with a quiz bolted on. Put this hook on the board before you dim the lights: Latitude is how far from the equator. Longitude is how far from Greenwich. Together they are an address, not a decoration. By the end of the slot a pupil should be able to drop a point on a 3D Earth, read lat/long, and relate 15° of longitude to one hour. Curriculum tags in the header (KS3 map skills; GCSE; NGSS MS-ESS1-1) are filters, not a flag. The room is worldwide; SI first; International English. Ages on the card (KS3, GCSE, NGSS MS) are a suggested band, not a gate.

Every case locator on this site is a lat/long pair. Greenwich is the civil zero for longitude — a plaque on a rotating sphere, not a machine that makes day and night. US Eastern, Central, Mountain, and Pacific are four civil labels across about 60° of longitude; the terminator ignores the jogs around state lines. A Leeds frost at 07:00 is already sunlight on a Berlin school roof. Snowdonia and Yosemite sit at different longitudes, so the same full Moon rises at different clock times; the coordinate is an address, not a decoration. Railways forced time zones onto 15° meridians. Rescue, aviation, and every atlas pin still speak this language. The equator does none of that work: it is 0° latitude, a different axis of the same net. Live weather satellites in geostationary slots match this spin. Historical noon was local until the railways forced zones.

The 3D is a named, inspectable object. Click the part, not a caption. If the model will not spin, the Why panel still carries the mechanism, the two photographs, and the film. Do not apologise for the model. Drive it. A silent spin teaches a screensaver. A named mesh that changes under a slider teaches the process.

Fifteen minutes on the projector

Point at the equator, then Greenwich. Equator is 0° latitude. Greenwich is 0° longitude. They cross at right angles. The equator is not a line of longitude. That is the misconception. Scrub Latitude and Longitude. Drop a marker on London, then New York. Read the coordinates aloud. East and west mix-ups happen here. Ask the hour difference before you reveal: 15° of longitude is about one hour of Earth rotation. Coordinates are a grid on a sphere. They do not make the Earth flat. A point at 0°, 0° sits in the Atlantic, south of Ghana, not in London. The International Date Line is not the Greenwich meridian. Time zones are labels on longitude. They do not cause day and night. Finish in Check.

Open the lab full screen (F). Labels on (L). Speak the first step before you touch a slider: The mesh of meridians and parallels is the graticule. Equator 0° latitude. Greenwich 0° longitude. Then the second: Scrub the marker. Read the coordinates. 15° of longitude is one hour of Earth rotation. Then the third: Coordinates are a grid on a sphere. They do not make the Earth flat.

The sliders that earn their keep are Latitude (°); Longitude (°). Space plays; arrows nudge time; R resets. Parameters the URL can remember: lat, lon. If you only have eight minutes, skip the last step and finish in Check. Projector layout (P) is for the back row: one idea, large type, the model still live.

Scrub Latitude and Longitude. Drop a marker on London, then New York. Read the coordinates aloud. East and west mix-ups happen here. Point at the equator, then Greenwich: they cross at right angles. Ask the hour difference before you reveal: 15° of longitude is about one hour. Orbit the globe so meridians and parallels read as a net, not a decoration. Pause on Greenwich 0°, then on a US time-zone longitude, and count the hours. Keyboard: L labels, R reset. Latitude and Longitude sliders live in the control bar. The readout follows the pin, including the hour offset.

The in-site film is “What is a Map? Crash Course Geography #2” (Crash Course Geography, about 11 min, Crash Course / Complexly on YouTube. Standard YouTube licence. Educational embed, autoplay off.). Autoplay is off. Play one minute if you need a second voice; do not let the film eat the slot. The 3D still has to move under your hand.

What the third row will get wrong

You will hear the misconception before you have finished the first sentence. Write the false claim on the board and leave it there until the model has contradicted it. Do not skip this. A fluent pupil can recite the hook and still believe the false sentence.

“The equator is a line of longitude.” — no. The equator is 0° latitude. Greenwich is 0° longitude. They cross at right angles.

“0°, 0° is in London, because Greenwich is there.” — no. Greenwich is about 51.5°N, 0°. The equator meets Greenwich in the Gulf of Guinea, south of Ghana.

“The International Date Line is the Greenwich meridian.” — no. Greenwich is 0°. The date line is near 180°, with jogs for islands. Time zones are civil labels on longitude, not the cause of day and night.

Pitfalls to keep in your pocket: E/W mix-up: New York is west of Greenwich. Calling the International Date Line the Greenwich meridian. Putting 0°, 0° in London because the prime meridian is there. Teaching time zones as the machinery of day and night. Do not let a pupil leave thinking the 3D is a photograph. It is a teaching model. Where vertical exaggeration exists, T collapses it and the caption says so. A labelled lie of scale is honest. An unlabelled one is a cartoon.

Two places, not a slogan

The graticule is the network of meridians and parallels on a globe or map. Latitude is the angle from the equator, 0° to 90° north or south. Parallels never meet; they shrink toward the poles. Longitude is the angle from the Greenwich meridian, 0° to 180° east or west. Meridians run pole to pole and meet at the poles. The two families cross at right angles. The equator is 0° latitude, not a line of longitude. Greenwich is 0° longitude, a convention; the spin does not care which meridian we labelled zero. Fifteen degrees of longitude is about one hour of Earth rotation: 360° divided by 24 hours. Coordinates are a grid on a sphere. They do not make the Earth flat. A point at 0°, 0° sits in the Atlantic, south of Ghana, in the Gulf of Guinea — not in London. The International Date Line is near 180°, not the Greenwich meridian, and it jogs for islands. This lab draws the Tropic of Cancer at 23.44°N and the Arctic Circle at 66.56°N; they are tilt geometry, not climate belts painted on the sea. East and west mix-ups are the classic error: New York is west of Greenwich.

The first place to land is Greenwich meridian. The second is US time zones. Same process, different rock or climate. If a pupil can only name one place, they have a postcard, not a mechanism. Atlas entries for those names are a click from the case list; send them back to the lab with one sentence they can say in Check.

Do not flatten the comparison into “this country versus that country.” Name the landform. Holderness is till, not chalk. Hawaii is a hotspot, not an island arc. Yosemite is a glacial trough, not a river canyon. The 3D is allowed to be schematic; the place names are not allowed to be sloppy.

Figures and the film

Field photograph: Parallels and meridians on a globe. Parallels and meridians on a globe. The network of meridians and parallels on a globe or map. Source: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC. Credit: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC.

Mechanism photograph: Field photograph or official scientific figure for teaching graticule. Field photograph or official scientific figure for teaching graticule. A second photograph for the projector script — not the lab cover. Source: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC. Credit: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC.

Two photographs, two jobs. The field picture is the place. The mechanism picture is the process. Do not run the lesson on a single Apollo Earth disc. A carbon-cycle class is a forest and a seam, not a blue marble. An ENSO class is a Pacific temperature map, not Africa from Apollo 17.

Words they must be able to say

Say these out loud once while you click the matching mesh. If a word has no mesh, it still has a photograph in Terms.

Graticule: The network of meridians and parallels on a globe or map. Meridian: A line of longitude, pole to pole. Meridians meet at the poles. Parallel: A line of latitude, parallel to the equator. Parallels never meet. Latitude: Angle from the equator, 0° to 90° N or S. Not a distance in kilometres. Longitude: Angle from the prime meridian, 0° to 180° E or W. 15° is about one hour. Prime meridian: The civil zero of longitude. Greenwich is the school choice. The Earth does not care. Exam language also accepts “Greenwich meridian”. Equator: 0° latitude. It is a parallel, not a meridian. International Date Line: The civil date-change near 180°. It is not the Greenwich meridian, and it jogs for islands.

Exam-language toggle (the Teacher tab) swaps UK/US pairs where they exist — levée/levee, arête/arete — so a mixed room is not punished for spelling.

Close the slot

The globe is a sphere of true shape. The net is denser than a school atlas so it reads from the back of the room. The marker is a teaching pin, not a surveyed monument. Tropics and polar circles are drawn true. Time-zone jogs are omitted so the 15° hour stays the lesson. Without the 3D view: latitude is angle from the equator; longitude is angle from Greenwich; meridians meet at the poles and parallels never do; 15° is about one hour; 0°, 0° is the Gulf of Guinea, not London.

Finish in Check — ten questions, not a mood. The bank mixes definition, process, the misconception you just killed, a named place, and a read-the-model item (click the part; T). If a pupil can only recite the hook, they have not used the geometry. Wrong answers still show the one-line explain. Do not skip the explain.

Sources on the Teacher tab are the trail, not a bibliography to copy. Royal Observatory Greenwich; OS / USGS map skills.

Link back to the live lab and keep the same slug. Do not invent a parallel worksheet that contradicts T, SI, or the named parts.

This note is worldwide. Curriculum tags (KS3 map skills; GCSE; NGSS MS-ESS1-1) are filters, not a flag. A class in Nairobi, London, or Shanghai can use the same 3D. Ages (KS3, GCSE, NGSS MS) are a suggested band. If a sentence only works in one exam board, rewrite it before you project it.

Write these three lines on the board before you dim the lights. One: Latitude is how far from the equator. Longitude is how far from Greenwich. Together they are an address, not a decoration. Two: the misconception “The equator is a line of longitude.”. Three: the named parts they must click. Then drive the model. Check is ten questions covering definition, process, the misconception, a place, and a read-the-model item. Do not skip the explain on a wrong answer.

Board, units, and what not to say

SI first. Metres, kilometres, degrees Celsius, metres per second. A conversion in brackets is courtesy, not a second system. Do not let a pupil leave thinking the 3D is a photograph. It is a teaching model. Where vertical exaggeration exists, T collapses it and the caption says so.

Do not say “teaching mesh”, “sprinkle”, or “thin free surface not a fat pipe” out loud. Say the landform. Seasons are ~23.44° of axial tilt, not Earth–Sun distance. The outer core is liquid; S-waves do not pass. Yosemite is a glacial U-trough. San Andreas is a transform. Hawaiʻi and Yellowstone are hotspots. Florida is not a glacial trough.

If the room is noisy, projector layout (P) is the back-row setting: one idea, large type, the model still live. Full screen (F). Labels (L). Space plays. Arrows nudge time. R resets. The URL can remember lat, lon. Send them home with the same link; there is no login.
