Why this lesson, and why the 3D

Grid references is a fifteen-minute projector lesson, not a homework packet and not a film with a quiz bolted on. Put this hook on the board before you dim the lights: An OS six-figure reference is a 100 m square, not a pin. Eastings then northings. Along the corridor, up the stairs. By the end of the slot a pupil should be able to read and plot a six-figure grid reference on a small UK tile. Curriculum tags in the header (GCSE map skills; AQA 3.3; KS3) are filters, not a flag. The room is worldwide; SI first; International English. Ages on the card (KS3, GCSE) are a suggested band, not a gate.

GCSE paper 3 lives here. Walkers on Snowdonia still use six-figure references; phones hide them behind a pin. The OS sheet of Eryri is a projected kilometre grid, not lat/long. Yosemite’s USGS quad is a different national grid — often feet on older plates — the same idea of a square on a projected plane, different letters and units. Lake District tiles use the same OSGB habit: eastings then northings. Rescue, Duke of Edinburgh, and the map paper all punish northings first. A six-figure is a 100 m square you can stand in, not a lamp-post. Along the corridor, up the stairs is still the mnemonic that earns marks. A missed digit on a mountain day is a 100 m error you can walk; a swapped easting and northing is a kilometre in the wrong direction. Phones will not sit the exam.

The 3D is a named, inspectable object. Click the part, not a caption. If the model will not spin, the Why panel still carries the mechanism, the two photographs, and the film. Do not apologise for the model. Drive it. A silent spin teaches a screensaver. A named mesh that changes under a slider teaches the process.

Fifteen minutes on the projector

Give a six-figure. Wait for fingers on the tile. Eastings first, then northings: along the corridor, up the stairs. Then drop the marker. Reverse: hide the numbers, ask the class to read. Scrub Easting and Northing so the point walks. A six-figure reference locates a 100 m square, not a single lamp-post. That is the misconception. Eight-figure is 10 m. GPS is something else. Four-figure names a 1 km square by its south-west corner. This is not lat/long. OSGB is a projected kilometre grid on Great Britain. The graticule lab is the sphere. Do not call this the graticule. Northings first is the classic mark-loser. Easting then northing, every time. Yosemite’s USGS quad is a cousin, not this grid. Same square idea, different letters. Finish in Check.

Open the lab full screen (F). Labels on (L). Speak the first step before you touch a slider: The blue grid is a kilometre. A four-figure reference names a 1 km square. Six-figure splits it into 100 m. Then the second: Drop a marker. Read eastings first, then northings. Then the third: This is not lat/long. OSGB is a projected grid on Britain. The graticule lab is the sphere.

The sliders that earn their keep are Easting; Northing. Space plays; arrows nudge time; R resets. Parameters the URL can remember: easting, northing. If you only have eight minutes, skip the last step and finish in Check. Projector layout (P) is for the back row: one idea, large type, the model still live.

Give a six-figure. Wait for fingers on the tile. Eastings first, then northings. Then drop the marker. Reverse: hide the numbers, ask the class to read. Scrub Easting and Northing so the point walks. Play so the marker walks the tile and freeze when the six-figure matches the one on the board. Ask which 1 km square you are in before you ask the 100 m cell. Point at the easting arrow first. Keyboard: L labels, R reset. Easting and Northing sliders live in the control bar. The readout prints the six-figure and the 1 km square.

The in-site film is “What is a Map? Crash Course Geography #2” (Crash Course Geography, about 11 min, Crash Course / Complexly on YouTube. Standard YouTube licence. Educational embed, autoplay off.). Autoplay is off. Play one minute if you need a second voice; do not let the film eat the slot. The 3D still has to move under your hand.

What the third row will get wrong

You will hear the misconception before you have finished the first sentence. Write the false claim on the board and leave it there until the model has contradicted it. Do not skip this. A fluent pupil can recite the hook and still believe the false sentence.

“A six-figure reference is a single lamp-post.” — no. It is a 100 m square. Eight-figure is 10 m. GPS is something else.

“You read northings first, then eastings.” — no. Eastings then northings. Along the corridor, up the stairs. Northings first is the classic mark-loser.

“OS grid is the same as lat/long.” — no. OSGB is a projected kilometre grid on Great Britain. The graticule lab is the sphere. GPS on WGS84 is a third tool.

Pitfalls to keep in your pocket: Northings first. Calling it lat/long or the graticule. Treating a six-figure as a lamp-post instead of a 100 m square. Mixing OSGB letters with a phone GPS pin and calling them the same. Do not let a pupil leave thinking the 3D is a photograph. It is a teaching model. Where vertical exaggeration exists, T collapses it and the caption says so. A labelled lie of scale is honest. An unlabelled one is a cartoon.

Two places, not a slogan

You read a grid reference eastings then northings. Along the corridor, then up the stairs. The blue grid is a kilometre. A four-figure reference names a 1 km square by its south-west corner: 1234 means easting 12, northing 34. Six-figure splits that square into a 100 m cell. Eight-figure is 10 m. This is not lat/long. OSGB is a projected kilometre grid on Great Britain. The graticule lab is the sphere. GPS is a pin on WGS84; it is something else, then converted for the sheet. A six-figure is a square, not a single lamp-post. Northings first is the classic mark-loser. The numbers increase east and north from a false origin south-west of the Isles. 100 km letters (SH, NY) name the big square; this lab’s tile is the numbers inside one square. Each extra pair of digits divides by ten. To plot: find the easting to the west of the point, then the northing to the south, then estimate tenths inside the square. That estimate is why six-figure is 100 m, not a pin. Never read the numbers as latitude. Never start with the northing. The school mnemonic is not a joke; it is the mark scheme.

The first place to land is Snowdonia OS tile. The second is Lake District OS tile. Same process, different rock or climate. If a pupil can only name one place, they have a postcard, not a mechanism. Atlas entries for those names are a click from the case list; send them back to the lab with one sentence they can say in Check.

Do not flatten the comparison into “this country versus that country.” Name the landform. Holderness is till, not chalk. Hawaii is a hotspot, not an island arc. Yosemite is a glacial trough, not a river canyon. The 3D is allowed to be schematic; the place names are not allowed to be sloppy.

Figures and the film

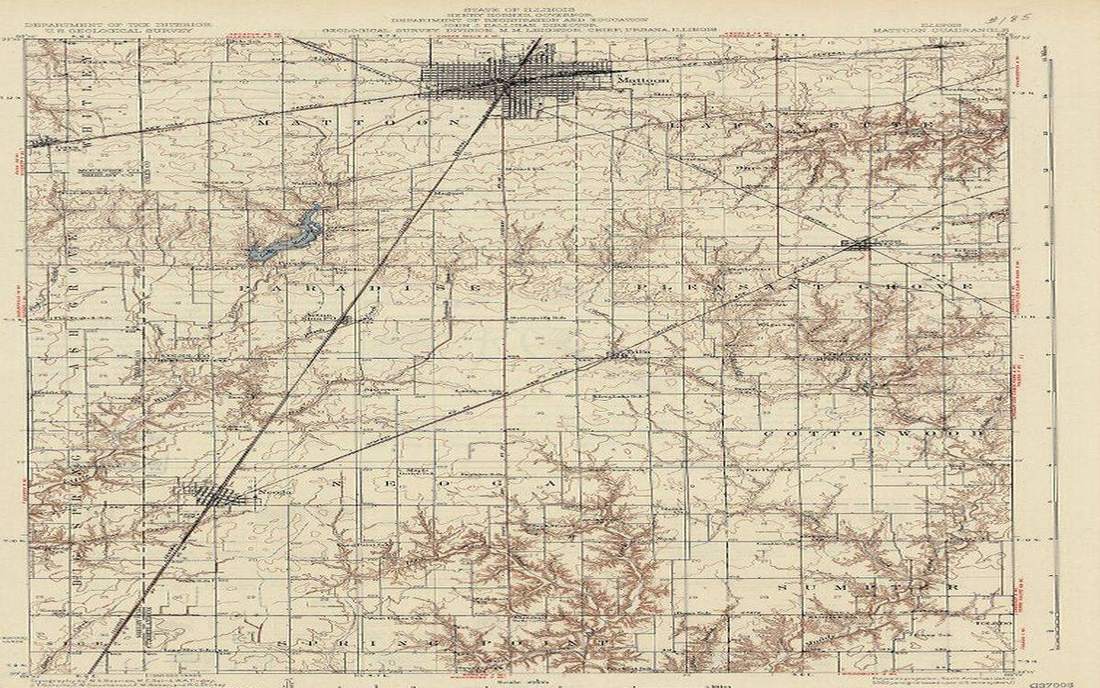

Field photograph: A national grid on a topographic sheet. A national grid on a topographic sheet. This is the classroom sense of grid-references: a named landform, process, or object. Source: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC. Credit: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC.

Mechanism photograph: Field photograph or official scientific figure for teaching grid references. Field photograph or official scientific figure for teaching grid references. A second photograph for the projector script — not the lab cover. Source: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC. Credit: Wikimedia Commons / NASA / USGS / NOAA, public domain or CC.

Two photographs, two jobs. The field picture is the place. The mechanism picture is the process. Do not run the lesson on a single Apollo Earth disc. A carbon-cycle class is a forest and a seam, not a blue marble. An ENSO class is a Pacific temperature map, not Africa from Apollo 17.

Words they must be able to say

Say these out loud once while you click the matching mesh. If a word has no mesh, it still has a photograph in Terms.

Easting: How far east in the grid. Read first. Along the corridor. Northing: How far north in the grid. Read second. Up the stairs. Four-figure grid reference: Names a 1 km square by its south-west corner. Six-figure grid reference: Locates a 100 m square on the OS grid. Not a pin. OSGB: A projected kilometre grid on Great Britain. Different tool from lat/long. Exam language also accepts “British National Grid”. False origin: The south-west point from which eastings and northings are counted, off the Isles so all numbers stay positive. Grid square: The cell the reference names. Four-figure: 1 km. Six-figure: 100 m. Eight-figure: 10 m. WGS84: The GPS ellipsoid and datum. A phone pin is not an OS six-figure until it is converted.

Exam-language toggle (the Teacher tab) swaps UK/US pairs where they exist — levée/levee, arête/arete — so a mixed room is not punished for spelling.

Close the slot

The tile is a schematic grid, not a traced OS sheet of Snowdonia. The 100 m cell is a square you can see, not a surveyed lamp-post. Blue lines are the kilometre grid; the inner mesh is the 100 m split of one square. Houses on the tile are props, not addresses. Without the 3D view: eastings then northings; four-figure is 1 km by the south-west corner; six-figure is 100 m; this is OSGB, not the graticule; GPS is a different tool.

Finish in Check — ten questions, not a mood. The bank mixes definition, process, the misconception you just killed, a named place, and a read-the-model item (click the part; T). If a pupil can only recite the hook, they have not used the geometry. Wrong answers still show the one-line explain. Do not skip the explain.

Sources on the Teacher tab are the trail, not a bibliography to copy. Ordnance Survey map skills; OS GetOutside grid references.

Link back to the live lab and keep the same slug. Do not invent a parallel worksheet that contradicts T, SI, or the named parts.

This note is worldwide. Curriculum tags (GCSE map skills; AQA 3.3; KS3) are filters, not a flag. A class in Nairobi, London, or Shanghai can use the same 3D. Ages (KS3, GCSE) are a suggested band. If a sentence only works in one exam board, rewrite it before you project it.

Write these three lines on the board before you dim the lights. One: An OS six-figure reference is a 100 m square, not a pin. Eastings then northings. Along the corridor, up the stairs. Two: the misconception “A six-figure reference is a single lamp-post.”. Three: the named parts they must click. Then drive the model. Check is ten questions covering definition, process, the misconception, a place, and a read-the-model item. Do not skip the explain on a wrong answer.

Board, units, and what not to say

SI first. Metres, kilometres, degrees Celsius, metres per second. A conversion in brackets is courtesy, not a second system. Do not let a pupil leave thinking the 3D is a photograph. It is a teaching model. Where vertical exaggeration exists, T collapses it and the caption says so.

Do not say “teaching mesh”, “sprinkle”, or “thin free surface not a fat pipe” out loud. Say the landform. Seasons are ~23.44° of axial tilt, not Earth–Sun distance. The outer core is liquid; S-waves do not pass. Yosemite is a glacial U-trough. San Andreas is a transform. Hawaiʻi and Yellowstone are hotspots. Florida is not a glacial trough.

If the room is noisy, projector layout (P) is the back-row setting: one idea, large type, the model still live. Full screen (F). Labels (L). Space plays. Arrows nudge time. R resets. The URL can remember easting, northing. Send them home with the same link; there is no login.
